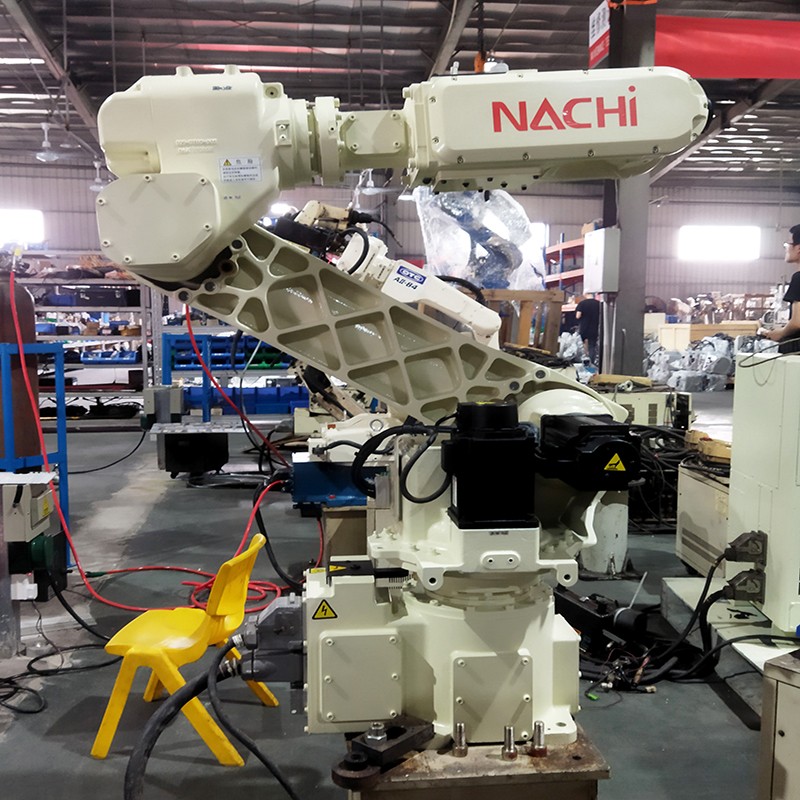

Used Nachi MC20 6-Axis Industrial Robot Arm for Palletizing with FD11 Controller

The used Nachi MC20 is a fast, compact 6-axis articulated industrial robot engineered specifically for high-speed palletizing, material handling, machine tending, and pick-and-place applications. Featuring a 20kg payload capacity and a 1722mm horizontal reach, this hollow-wrist series robot delivers exceptional path accuracy, high joint acceleration, and flexible cell integration. Rigorously inspected, serviced, and fully load-tested by Fancheng Robot Technology Co., Ltd., this refurbished Nachi robot provides a reliable, turn-key, and cost-effective automation solution for end-of-line packaging and palletizing.

Technical Specifications

Specification	Details
Model	Nachi MC20
Primary Application	Palletizing, Material Handling, Machine Tending
Number of Axes	6 Axes
Payload Capacity	20 kg
Maximum Reach	1722 mm
Position Repeatability	$\pm0.06\text{ mm}$

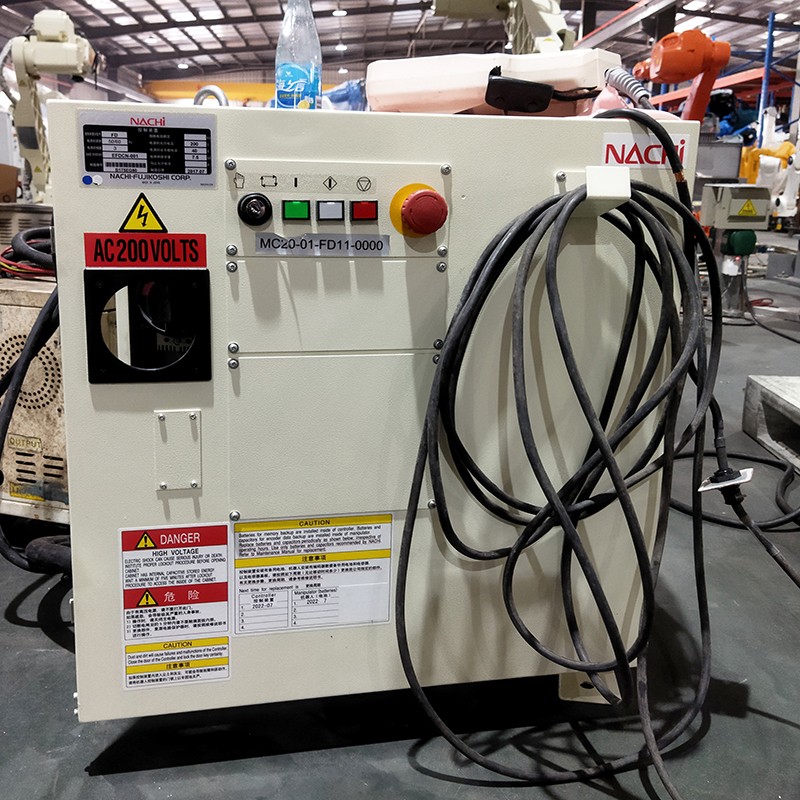

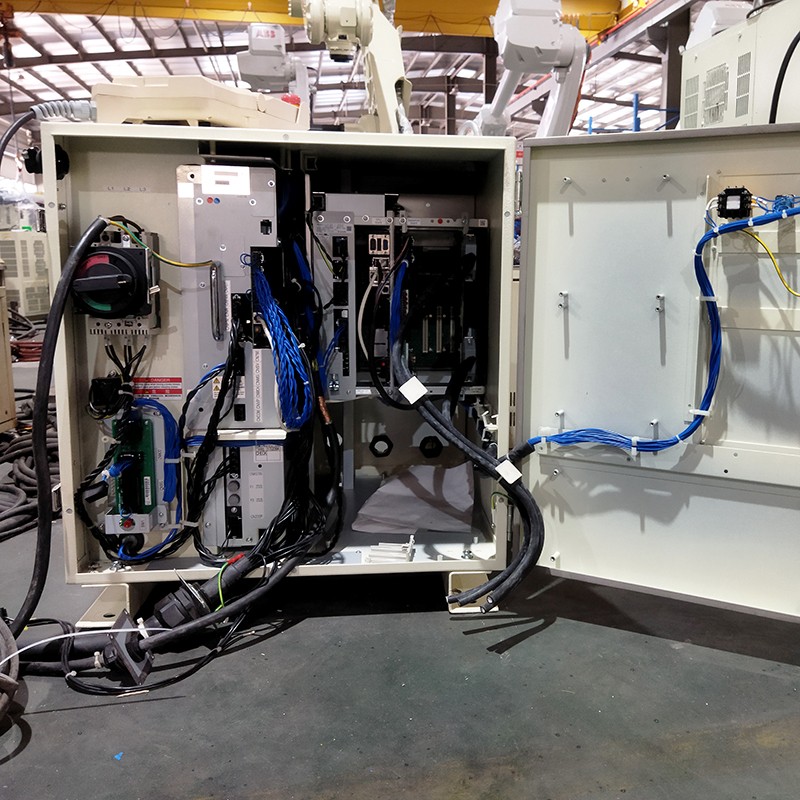

Controller Type	Nachi FD11 / AX / CFD
Protection Rating	IP54 / IP67 (Wrist Area)
Mounting Position	Floor, Inverted
Condition	Pre-owned / Refurbished

product details

Product Description

The Nachi MC20 robot stands out as a top-tier industrial automation solution, tailored to meet the intricate demands of modern manufacturing operations. Boasting a blend of versatility, precision, and efficiency, the MC20 is a powerhouse in the realm of robotic technology.

At the heart of the MC20 lies its advanced motion control system, setting the stage for impeccable speed and accuracy in a wide array of applications. This robot's agility and adaptability are further enhanced by its state-of-the-art sensors and intelligent algorithms, ensuring seamless integration into diverse production settings for optimal performance.

Designed with user convenience in mind, the MC20 features an intuitive interface that simplifies programming and operation, streamlining setup processes and reducing downtime. Its compact footprint and versatile mounting options make it a seamless addition to existing workflows, maximizing floor space usage and operational flexibility.

From precision assembly tasks to intricate material handling operations, the Nachi MC20 excels across various industrial applications, delivering consistent and reliable results. Elevate your manufacturing capabilities with the Nachi MC20 robot, a reliable and efficient automation solution that sets new standards for performance and productivity in the industry.

Product Display

Leave Your Message

Related products

Used Nachi SRA166L Heavy-Payload Spot Welding Industrial Robot Arm with FD11 Controller

2018-07-16

The used Nachi SRA166L is a high-speed, heavy-duty 6-axis articulated industrial robot engineered for high-performance spot welding, material handling, press tending, and heavy palletizing. Featuring a massive 166kg payload capacity and an extended 3102mm horizontal reach, this ultra-rigid long-arm robot delivers accelerated axis motion, reduced power consumption, and minimal vibration. Thoroughly inspected, serviced, and fully load-tested by Fancheng Robot Technology Co., Ltd., this refurbished Nachi robot provides a reliable, turn-key, and cost-effective automation solution for automotive and heavy manufacturing lines.

Technical Specifications

Specification	Details
Model	Nachi SRA166L
Robot Type	6-Axis Heavy-Duty Spot Welding & Handling Robot
Number of Axes	6 Axes
Payload Capacity	166 kg
Maximum Reach	3102 mm
Position Repeatability	$\pm0.1\text{ mm}$
Controller Type	Nachi FD11 / AX / CFD
Protection Rating	IP54 (Body) / IP67 (Wrist)
Mounting Position	Floor Mount
Condition	Pre-owned / Refurbished

view detail

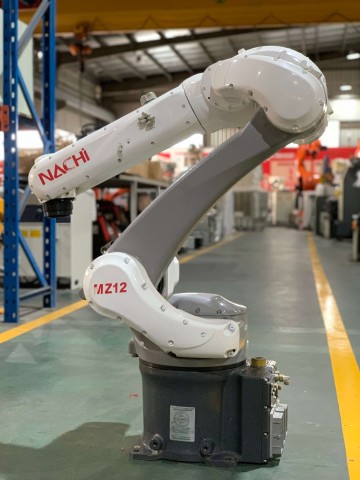

Used Nachi MZ12 6-Axis Industrial Robot Arm (12kg Payload) with CFD Controller

2018-07-16

The used Nachi MZ12 is a compact, high-speed 6-axis articulated industrial robot designed for medium-payload processing including material handling, machine tending, arc welding, dispensing, and palletizing. Featuring a 12kg payload capacity and a 1454mm reach, this versatile robot offers high wrist torque, hollow-wrist cable routing, and exceptional axis speeds. Thoroughly inspected, cleaned, and load-tested by Fancheng Robot Technology Co., Ltd., this refurbished Nachi robot provides an economical, turn-key automation solution for demanding manufacturing cells.

Technical Specifications

Specification	Details
Model	Nachi MZ12
Robot Type	6-Axis Articulated Industrial Robot
Number of Axes	6 Axes
Payload Capacity	12 kg
Maximum Reach	1454 mm
Position Repeatability	$\pm0.04\text{ mm}$
Controller Type	Nachi CFD / CFM
Protection Rating	IP67 (Wrist) / IP65 (Body)
Mounting Position	Floor, Inverted, Wall, Angle
Condition	Pre-owned / Refurbished

view detail

Used Nachi MC470P 4-Axis High-Speed Palletizing Industrial Robot Arm with FD11 Controller

2018-07-16

The used Nachi MC470P (MC Palletizing Series) is a heavy-duty, high-speed 4-axis articulated palletizing robot engineered for high-volume end-of-line packaging, heavy bag and box stacking, layer depalletizing, and bulk material handling. Featuring a massive 470kg payload capacity and a 3159mm horizontal reach, this robust robot combines high-torque parallel link kinematics with fast acceleration and heavy load stability. Thoroughly inspected, serviced, and fully load-tested by Fancheng Robot Technology Co., Ltd., this refurbished Nachi palletizing robot provides a turn-key, reliable, and cost-effective automation solution.

Technical Specifications

Specification	Details
Model	Nachi MC470P (MC Palletizing Series)
Robot Type	4-Axis High-Speed Heavy-Duty Palletizing Robot
Number of Axes	4 Axes
Payload Capacity	470 kg
Maximum Reach	3159 mm
Position Repeatability	$\pm0.1\text{ mm}$
Controller Type	Nachi FD11 / AX
Protection Rating	IP54 (Body) / IP65 (Wrist)
Mounting Position	Floor Mount
Condition	Pre-owned / Refurbished

view detail

Used Nachi MC50 6-Axis Medium-Heavy Payload Industrial Robot Arm with FD11 Controller

2018-07-16

The used Nachi MC50 (MC Series) is a versatile, high-speed 6-axis articulated industrial robot engineered for medium-to-heavy material handling, machine tending, material removal, palletizing, and spot/arc welding. Featuring a 50kg payload capacity and a 2050mm horizontal reach, this robust robot combines high wrist torque, excellent motion rigidity, and a slim arm profile. Thoroughly inspected, cleaned, and fully load-tested by Fancheng Robot Technology Co., Ltd., this refurbished Nachi robot delivers a turn-key, cost-effective automation solution for demanding industrial environments.

Technical Specifications

Specification	Details
Model	Nachi MC50
Robot Type	6-Axis Medium-Heavy Payload Industrial Robot
Number of Axes	6 Axes
Payload Capacity	50 kg
Maximum Reach	2050 mm
Position Repeatability	$\pm0.07\text{ mm}$
Controller Type	Nachi FD11 / AX / CFD
Protection Rating	IP54 (Body) / IP67 (Wrist)
Mounting Position	Floor Mount
Condition	Pre-owned / Refurbished

view detail

Used Nachi MZ07 6-Axis Small Payload Industrial Robot Arm with CFD Controller

2018-07-16

The used Nachi MZ07 is a high-speed, compact 6-axis articulated mini industrial robot engineered for light material handling, machine tending, pick and place, assembly, and inspection. Featuring a 7kg payload capacity and a 723mm reach, this versatile robot boasts the world's fastest motion speed in its class, hollow-wrist cable routing, and an IP67-rated wrist structure. Thoroughly inspected, cleaned, and load-tested by Fancheng Robot Technology Co., Ltd., this refurbished Nachi robot provides a reliable, turn-key automation solution for compact manufacturing cells.

Technical Specifications

Specification	Details
Model	Nachi MZ07
Robot Type	6-Axis Small Payload Mini Industrial Robot
Number of Axes	6 Axes
Payload Capacity	7 kg
Maximum Reach	723 mm
Position Repeatability	$\pm0.02\text{ mm}$
Controller Type	Nachi CFD / CFM
Protection Rating	IP67 (Wrist) / IP65 (Body)
Mounting Position	Floor, Inverted, Wall, Ceiling
Condition	Pre-owned / Refurbished

view detail

Used Nachi MZ07L 6-Axis Long-Reach Industrial Robot Arm with CFD Controller

2018-07-16

The used Nachi MZ07L is a high-speed, compact 6-axis articulated long-reach industrial robot designed for light material handling, machine tending, pick and place, assembly, and inspection. Featuring a 7kg payload capacity and an extended 912mm horizontal reach (compared to the standard 723mm reach of the base MZ07), this versatile robot combines high axis speeds with a hollow-arm internal cabling design. Thoroughly inspected, cleaned, and load-tested by Fancheng Robot Technology Co., Ltd., this refurbished Nachi robot offers an economical and turn-key automation solution for dynamic factory floors.

Technical Specifications

Specification	Details
Model	Nachi MZ07L
Robot Type	6-Axis Articulated Long-Reach Industrial Robot
Number of Axes	6 Axes
Payload Capacity	7 kg
Maximum Reach	912 mm
Position Repeatability	$\pm0.03\text{ mm}$
Controller Type	Nachi CFD / CFM
Protection Rating	IP67 (Wrist) / IP65 (Body)
Mounting Position	Floor, Inverted, Wall, Angle
Condition	Pre-owned / Refurbished

view detail
