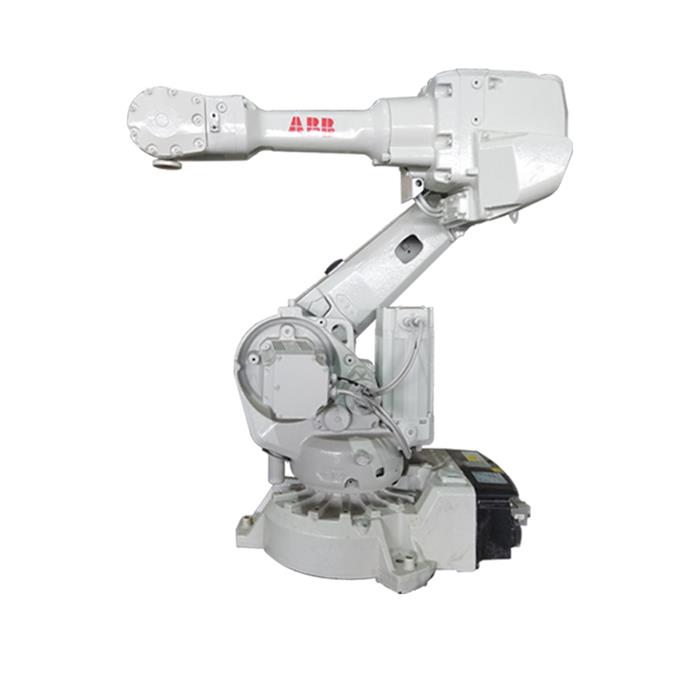

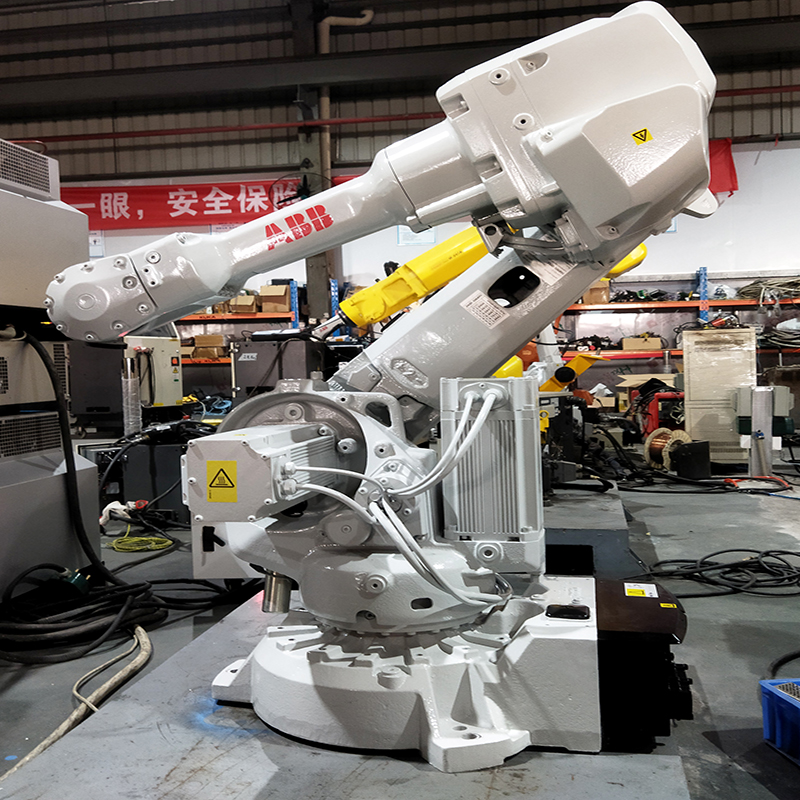

ABB IRB2600-20/1.65 Robot

Payload	20kg
Arm Reach	1650mm

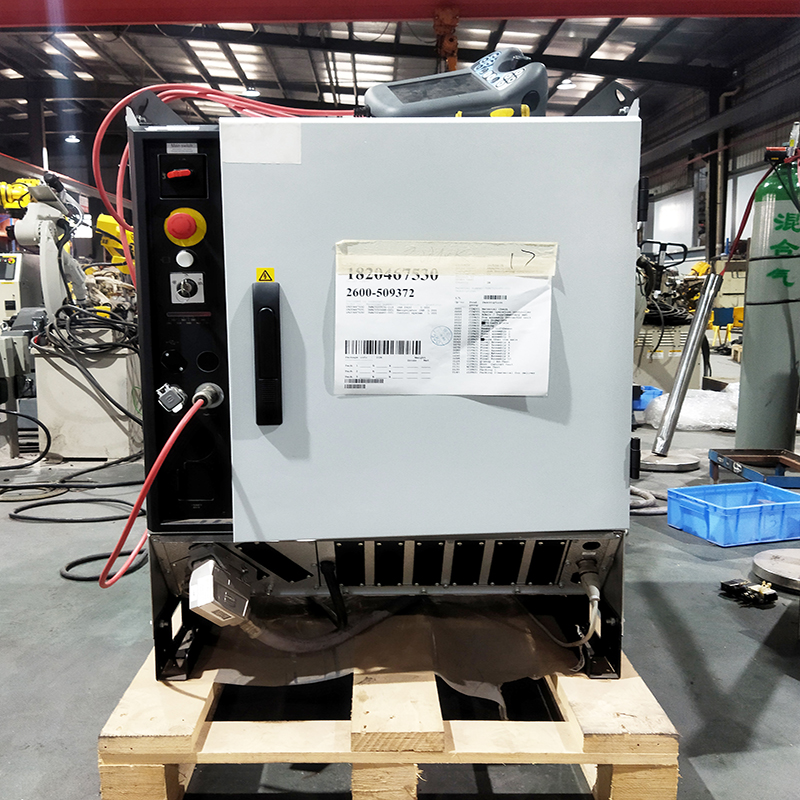

Controller	IRC5 M2004/IRC5 Single

The ABB IRB 2600-20/1.65 is a robust and versatile industrial robot designed for demanding applications such as material handling, arc welding, and machine tending. With a payload capacity of 20 kg and a reach of 1.65 meters, it combines strength and precision to handle heavy workloads efficiently. Its compact design and flexible 6-axis configuration make it ideal for confined spaces and complex tasks. Built with ABB's advanced motion control technology, the IRB 2600-20/1.65 ensures high accuracy, reliability, and seamless integration into modern production lines, making it a perfect choice for industries aiming to boost productivity and quality.

product details

Product Description

The IRB 2600 is the second model in the sharp generation range with enhanced and new capabilities. It is a compact robot with a high payload capacity. The design has been optimized for targeted applications like arc welding, material handling and machine tending. The options for floor, wall, shelf, tilted or inverted mounting configurations.

Sharp accuracy

With the best accuracy in its class, the IRB 2600 can help you increase output with higher process speeds and lower scrap rates, resulting in improved productivity. This is particularly useful in process applications, such as arc welding. The high accuracy is achieved by use of the patented TrueMove™ motion control software.

Short cycle times

Thanks to the compact and optimized design resulting in a low weight, the IRB 2600 can cut the cycle times of the industry benchmark by up to 25 %. The patented QuickMove™ motion control software ensures that the maximum acceleration achievable is highest in

its class, together with high maximum speeds. The benefit is increased production capacity and high productivity

Large working range

The combination of large working range and flexible mounting makes it possible to reach machines to be served without interfering with auxiliary equipment. By optimising the robot placement, you’ll benefit fromhigher productivity. Flexible mounting is also very useful when you are simulating the best position for your application.

Compact design

The IRB 2600 has the same small foot print as IRB 4600.With the IRB 2600 you can create your production cell with reduced floorspace by placing the robot closer to the served machines. The foot size makes it easier for the lower arm to reach straight downwards.

Best protection available

ABB has the most comprehensive protection program for industrial robots on the market. The IRB 2600 has IP67 as standard.
