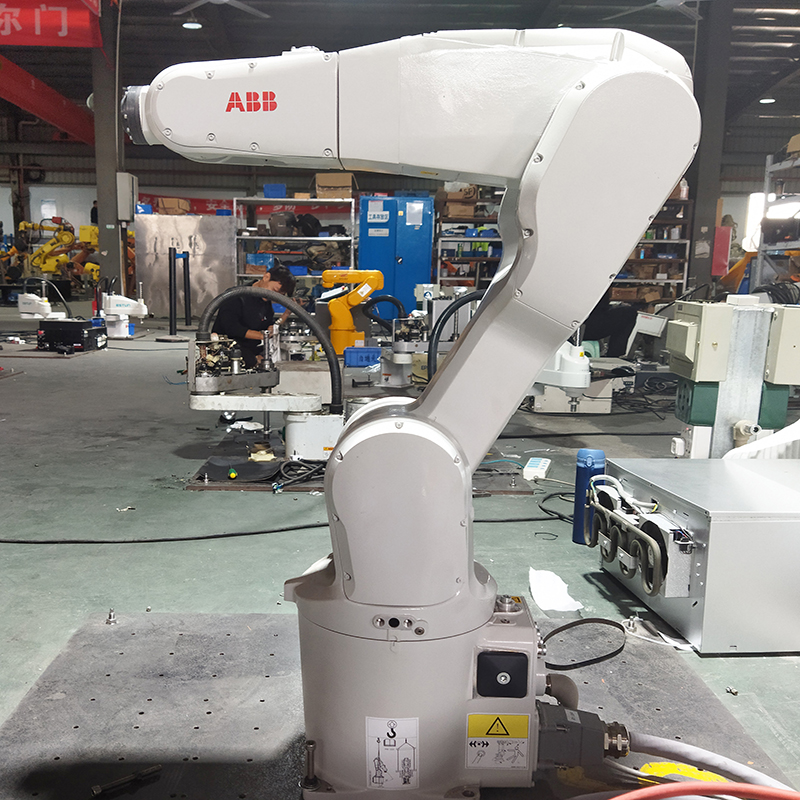

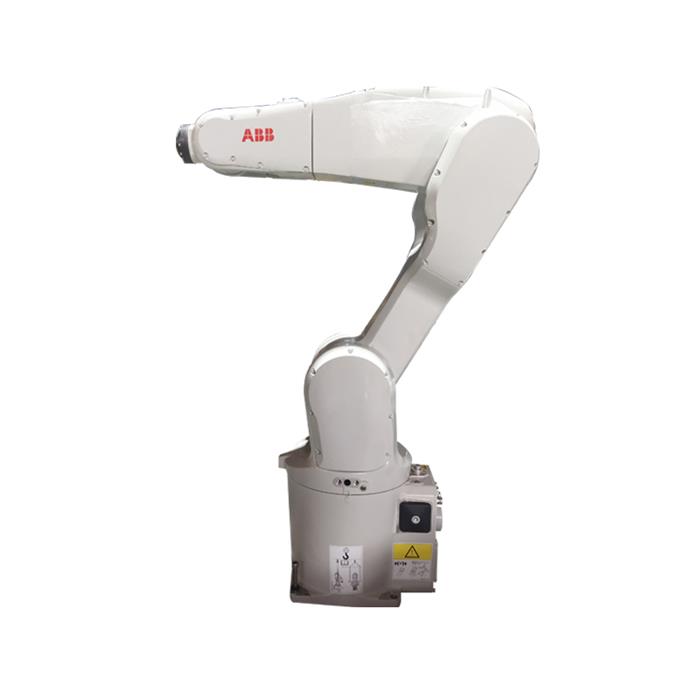

ABB IRB1200 Small Robot
Product Description
Have you ever wanted to make your machines 15% smaller and10% faster? ABB’s IRB 1200 allows you to do exactly that. Specifically, it addresses the needs of material handling and machine tending applications for flexibility, ease of use, compactness and short cycle times while still maintaining large working envelopes.
There are two specification for your choice. 7 kg/0.7 m and 5 kg/0.9 m.
Compact
The IRB 1200 has no offset in axis two, which results in a longer stroke than other small robots and it,meaning it can be placed very close to the work piece and still be functional. This allows for a much more compact installation when the robot is mounted on the ceiling inside a small cell, such as in electronics machining or polishing applications. The robots’ large useable working area contained in a small package leads to shorter cycles and more compact machines.
Features and benefits
• 15% smaller cells that have 10% shorter cycle times
• Available with Food Grade Lubrication
• Optionally with SafeMove functionality
• Available with Foundry Plus 2 protection for harsh environments
• IP40 protection as standard; cleanroom, IP67 and Foundry Plus 2 protection are also available options
• 4 air ducts, 10 customer signals and Ethernet routed internally from wrist flange to foot
• Mountable at any angle
• Large useable working area in a compact footprint
